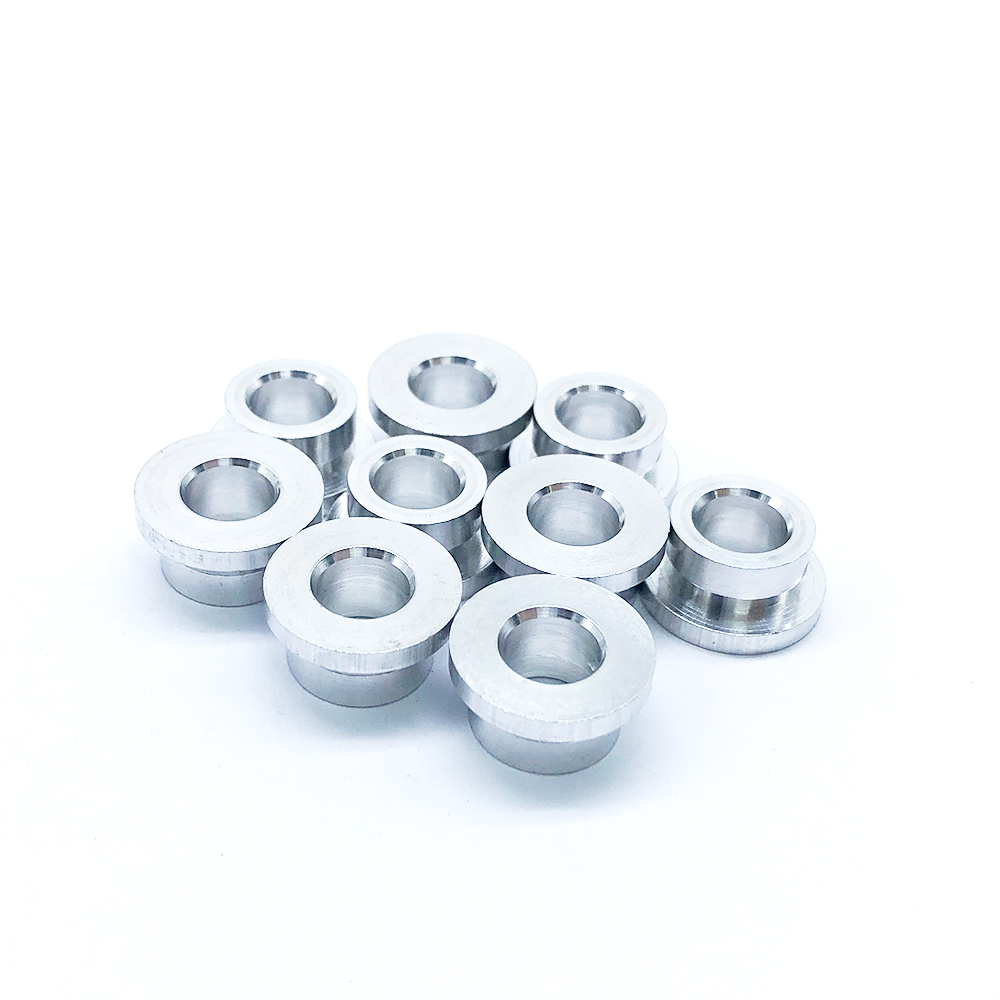

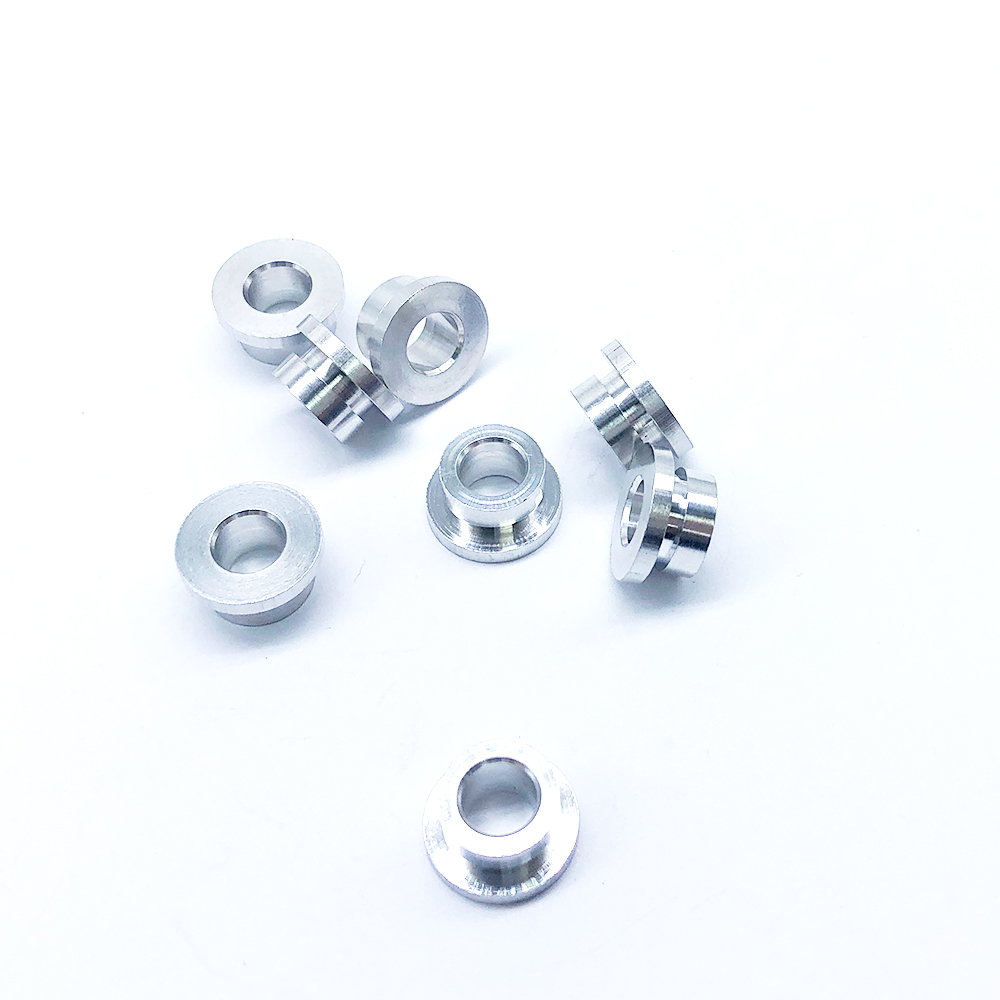

Eccentric Pulley

Size: M6.5*14*10.5*7.15

Grade: T6

Material: Al6063

Finish: Surface oxidation treatment

Key Features:

1. Offset Center:

   • The defining feature of an eccentric pulley is that the center of the pulley is not aligned with its axis of rotation. This causes the pulley to move in a non-circular path, creating a variable radius as it rotates.

2. Non-Uniform Rotation:

   • The offset design results in variable speed or changing torque being applied during rotation. When the pulley rotates, it speeds up or slows down at different points in its cycle due to the changing radius from the center of rotation.

3. Shape:

   • Eccentric pulleys are typically circular but may appear slightly elliptical depending on the degree of the offset. The actual shape and design can vary based on the intended application.

4. Materials:

   • Eccentric pulleys are usually made from durable materials such as steel, aluminum, or plastic, depending on the application. In heavy-duty applications, such as industrial machinery or automotive engines, they are typically made of high-strength metals.

5. Connection:

   • Eccentric pulleys can be used with a variety of belts, such as V-belts, timing belts, or flat belts, depending on the requirements of the system. The offset causes the belt to move in a non-linear fashion, which can be used to achieve unique mechanical outcomes.

Common Uses:

1. Timing Adjustments:

   • Eccentric pulleys are often used in timing systems, such as in internal combustion engines or camshaft systems. In these applications, the eccentric pulley can be used to adjust the timing of components such as valves or cams by slightly altering their movement.

2. Variable Speed Mechanisms:

   • In some machinery, eccentric pulleys are used to create variable-speed systems. Because the radius of the pulley changes as it rotates, the speed of the attached component will vary depending on the position of the pulley. This is useful in systems where different operating speeds are required at different times.

3. Adjusting Torque:

   • In systems where torque needs to vary throughout a cycle, eccentric pulleys can be used to produce fluctuating torque. The varying radius from the center of rotation causes the torque to change as the pulley turns, providing more torque at certain points and less at others.

4. Automotive Systems:

   • Eccentric pulleys are used in automotive engines, particularly in timing belt systems. In these systems, they can adjust the timing of the valve train, ensuring that the engine performs efficiently at various RPMs. They may also be used in systems like variable valve timing (VVT) to optimize engine performance and fuel efficiency.

5. Vibration Damping:

   • The eccentric motion of the pulley can also be used in systems designed to dampen vibrations. By varying the speed or motion of a connected component, an eccentric pulley can help reduce unwanted vibrations in certain machinery.

6. Belt Tracking:

   • In some conveyor systems or industrial machinery, an eccentric pulley may be used to adjust the tension or tracking of the belt, ensuring it moves smoothly and evenly during operation.

Advantages:

1. Variable Motion Control:

   • Eccentric pulleys provide precise control over motion, speed, and torque. They allow for a variable output in mechanical systems, which can be beneficial in applications requiring precise adjustments.

2. Compact Design:

   • Eccentric pulleys offer a compact solution for applications that need adjustable timing or torque without needing additional complex mechanisms. Their simple design makes them easy to incorporate into existing systems.

3. Efficiency in Power Transmission:

   • Eccentric pulleys can be used to alter the efficiency of power transmission in systems like timing belts, making them valuable in machinery where optimizing energy transfer is crucial.

4. Durability:

   • Eccentric pulleys, when made from high-strength materials, offer long-lasting performance even under heavy loads or continuous operation, making them ideal for industrial applications.

Applications in Specific Systems:

1. Camshaft Timing in Engines:

   • In internal combustion engines, eccentric pulleys can be used to adjust camshaft timing to optimize engine performance at different RPMs. For example, in variable valve timing (VVT) systems, an eccentric pulley can alter the timing of the intake and exhaust valves for improved fuel efficiency and performance across the engine’s operating range.

2. Timing Belt Systems:

   • In automotive or industrial timing belt systems, an eccentric pulley can be used to adjust the alignment and tension of the belt to ensure that it runs smoothly without slippage or undue wear.

3. Machine Tooling:

   • Eccentric pulleys are used in machine tooling applications, such as in lathes or milling machines, to create variable cutting speeds or to adjust the position of the workpiece for different operations.

4. Conveyor Systems:

   • In conveyor systems, an eccentric pulley may be used to adjust belt tension or to change the direction of motion, making it useful for applications requiring flexible movement or load distribution.

5. Vibration Isolation:

   • In applications where vibration isolation is required, the eccentric motion can help create a counteracting force to dampen vibrations, improving the performance and longevity of the system.
