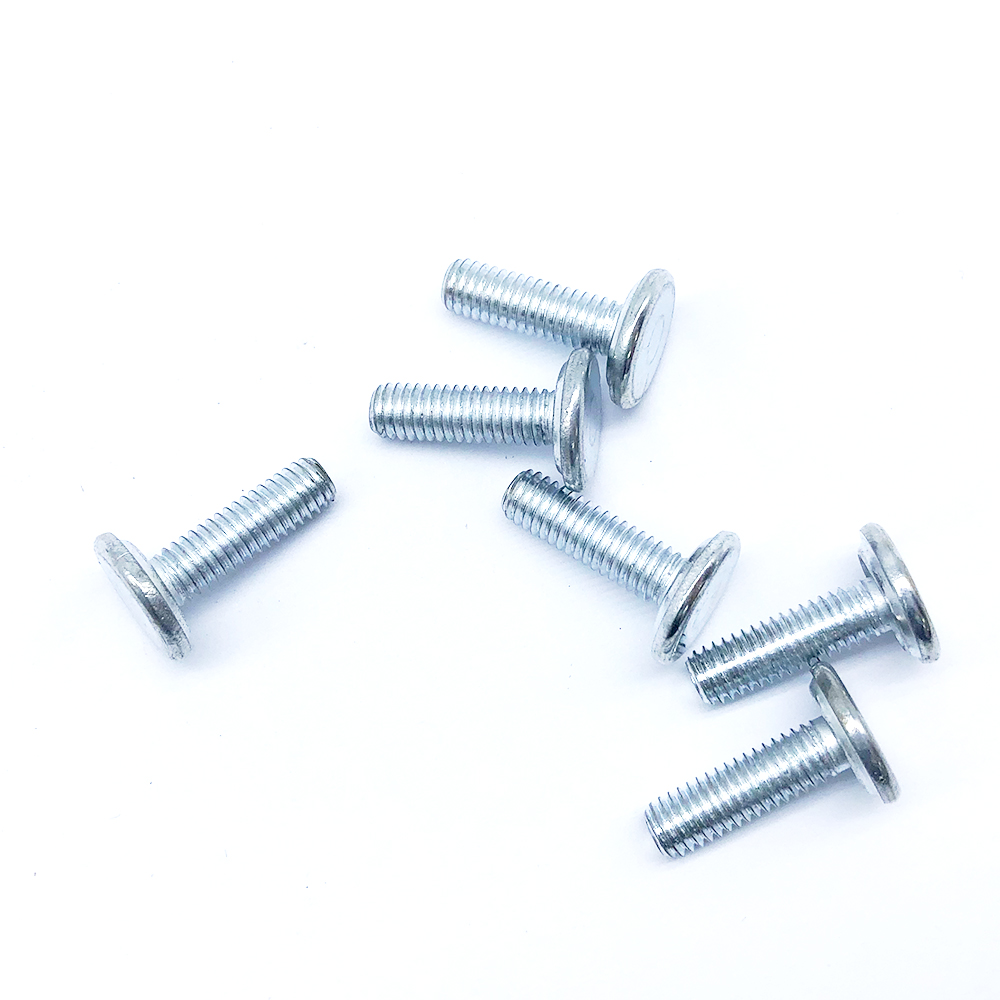

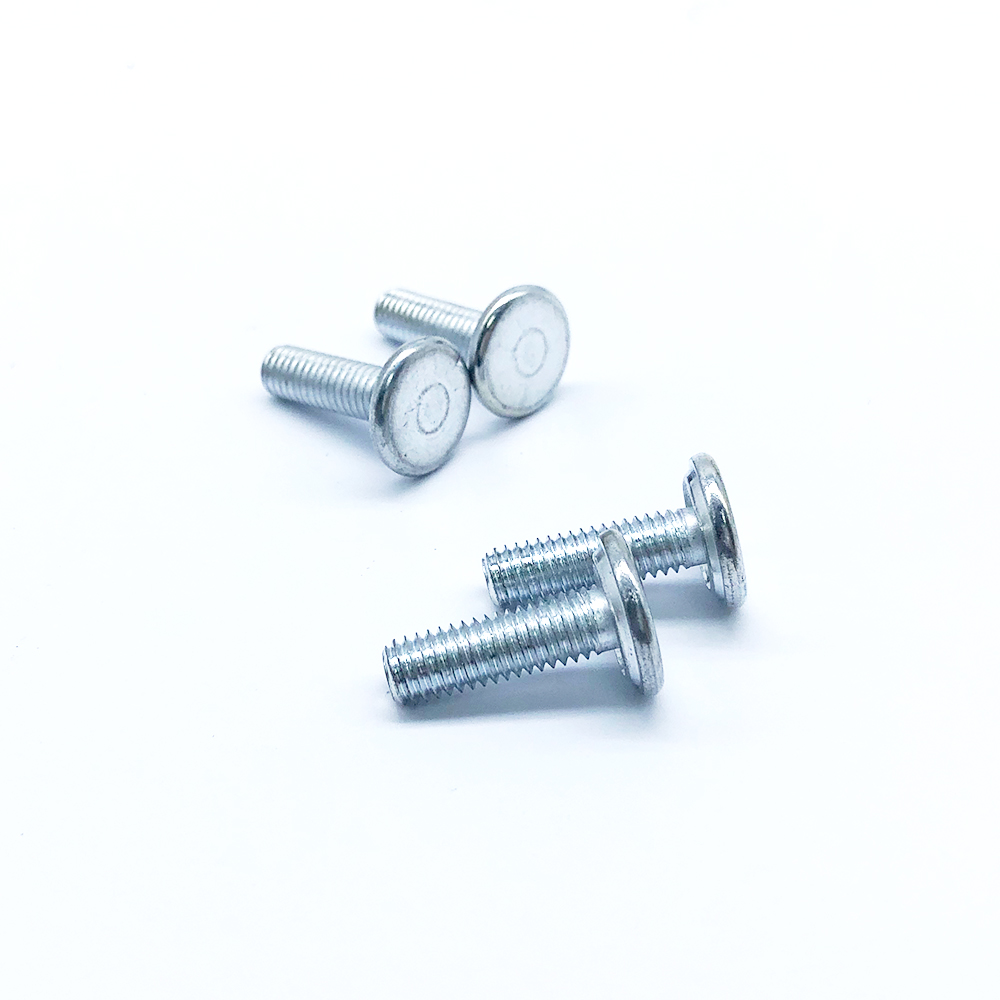

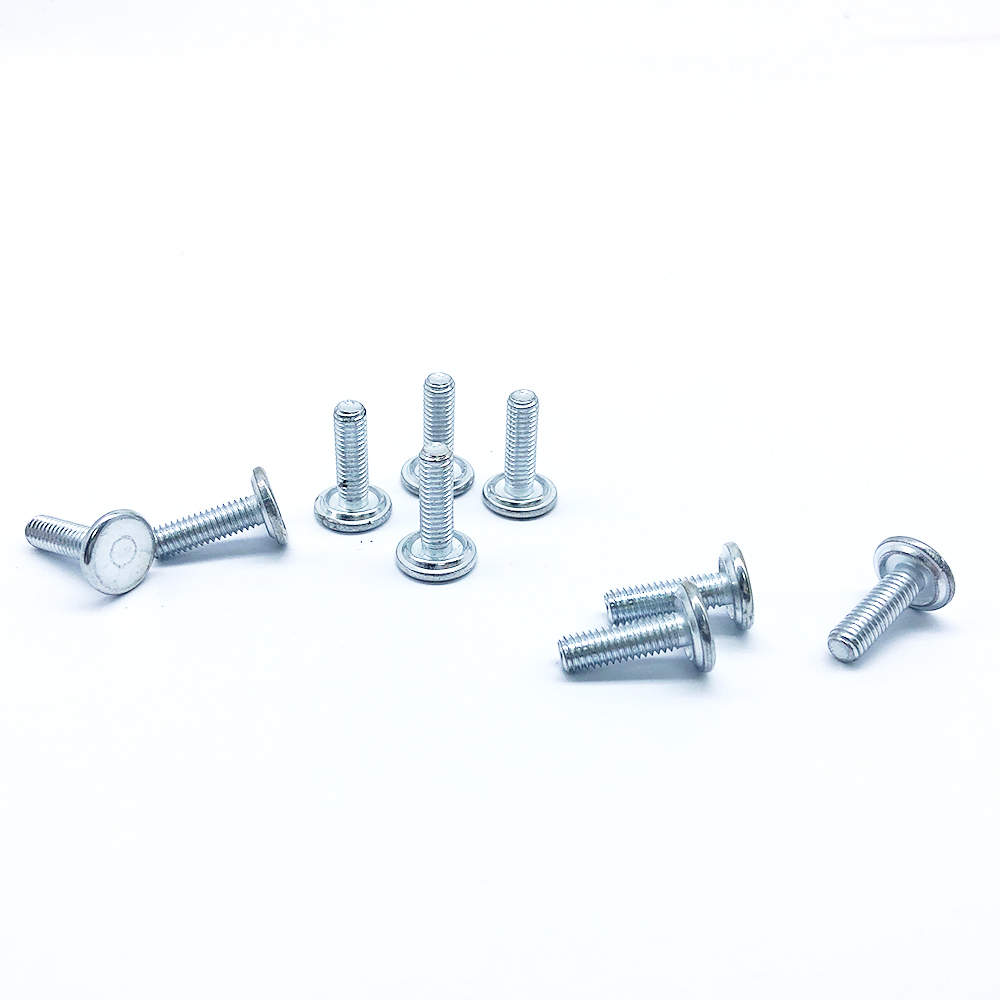

Positioning Screw

Size: M6*20L

Grade: 8

Material: 10b21

Finish: Blue and white zinc plating

Key Features:

1. Precision and Accuracy:

   • The primary function of a positioning screw is to provide precise alignment and hold components in a fixed position. It ensures that parts are positioned accurately, minimizing movement during assembly, machining, or other operations.

2. Thread Type:

   • Positioning screws typically use fine threads to allow for better adjustment and fine control over the part's placement. Fine threads are more precise than standard coarse threads, which is essential in applications where accurate positioning is critical.

3. Head Type:

   • The head of a positioning screw can vary depending on the application, but common head types include:
     • Flat head for flush mounting.
     • Socket or hex heads for use with wrenches or tools that require a tighter grip.
     • Slotted heads for manual adjustments.
   • The type of head chosen will depend on the intended use and the accessibility of the screw.

4. Material:

   • Positioning screws are usually made from steel, stainless steel, or alloy steel to provide sufficient strength and durability. Stainless steel or corrosion-resistant materials may be used in environments where the screw is exposed to moisture, chemicals, or other corrosive elements.
   • In some applications, brass, aluminum, or titanium may also be used for lightweight or high-strength needs.

5. Design for Adjustment:

   • Some positioning screws may feature adjustable or locking mechanisms, such as a locking nut or set screw, that allow for fine-tuning the position of the component being secured. These features help ensure that the part stays in place without drifting over time or due to external forces.

6. Shoulder or Collar:

   • In some cases, a positioning screw may have a shoulder or collar around the shaft to locate or restrict movement of the part being positioned. This shoulder serves as a physical stop, limiting the range of motion and ensuring consistent positioning.

7. Thread Length:

   • The length of the threaded portion of the screw can vary depending on the application. Longer thread lengths are used when the screw needs to engage with thicker parts or when greater adjustment is required.

Common Uses:

1. Machine Assembly:

   • In machining or automated assembly processes, positioning screws are used to fix parts in place on fixtures or jigs during processing (e.g., drilling, milling, or welding). These screws help to position the workpiece accurately while other operations are being carried out.

2. Jigs and Fixtures:

   • Positioning screws are widely used in jigs and fixtures to hold parts in place during machining or assembly. The screw ensures that components are aligned correctly so that subsequent operations are performed with accuracy.

3. Precision Equipment:

   • In precision equipment, such as optical instruments, microscopes, or measuring devices, positioning screws are used to align lenses, mirrors, or other critical components. Fine adjustment screws are commonly used in such systems for sub-micron adjustments.

4. Automotive Applications:

   • Positioning screws are often used in vehicle assembly, particularly in engine bays, chassis, and suspension components, to align and secure parts in place during the assembly process.

5. Electronics and Appliances:

   • Positioning screws may be used in electronic devices or appliances to secure circuit boards, panels, or other parts that need to be positioned precisely during assembly.

6. Furniture Assembly:

   • Positioning screws are used in furniture and cabinet making to align and secure components like shelves, legs, or doors in the correct position.

7. Tooling and Workholding:

   • In tooling or workholding applications, positioning screws help to secure components in the correct orientation on workstations, benches, or machines. The screw is used to lock a part into position so that precise work can be done.

Advantages:

1. Accurate Alignment:

   • Positioning screws help ensure that parts are aligned to tolerances and specifications, especially in applications where high precision is required.

2. Easy Adjustment:

   • Many positioning screws are designed for easy adjustment, allowing operators to fine-tune the position of parts without the need for complex tools or rework. Some may have a set screw or locking nut to prevent the screw from moving once adjusted.

3. Enhanced Efficiency:

   • By ensuring parts remain securely in position, positioning screws reduce the likelihood of errors or misalignment during manufacturing or assembly, improving overall productivity.

4. Versatility:

   • Positioning screws come in a variety of sizes, materials, and thread types, making them suitable for a wide range of applications across different industries.

5. Strong Hold:

   • Positioning screws are typically designed for high strength and durability, ensuring that they can hold parts in place securely even under high stresses or forces.

6. Cost-Effective:

   • Positioning screws are relatively inexpensive and provide a simple solution for ensuring accurate alignment and positioning in a variety of applications.
