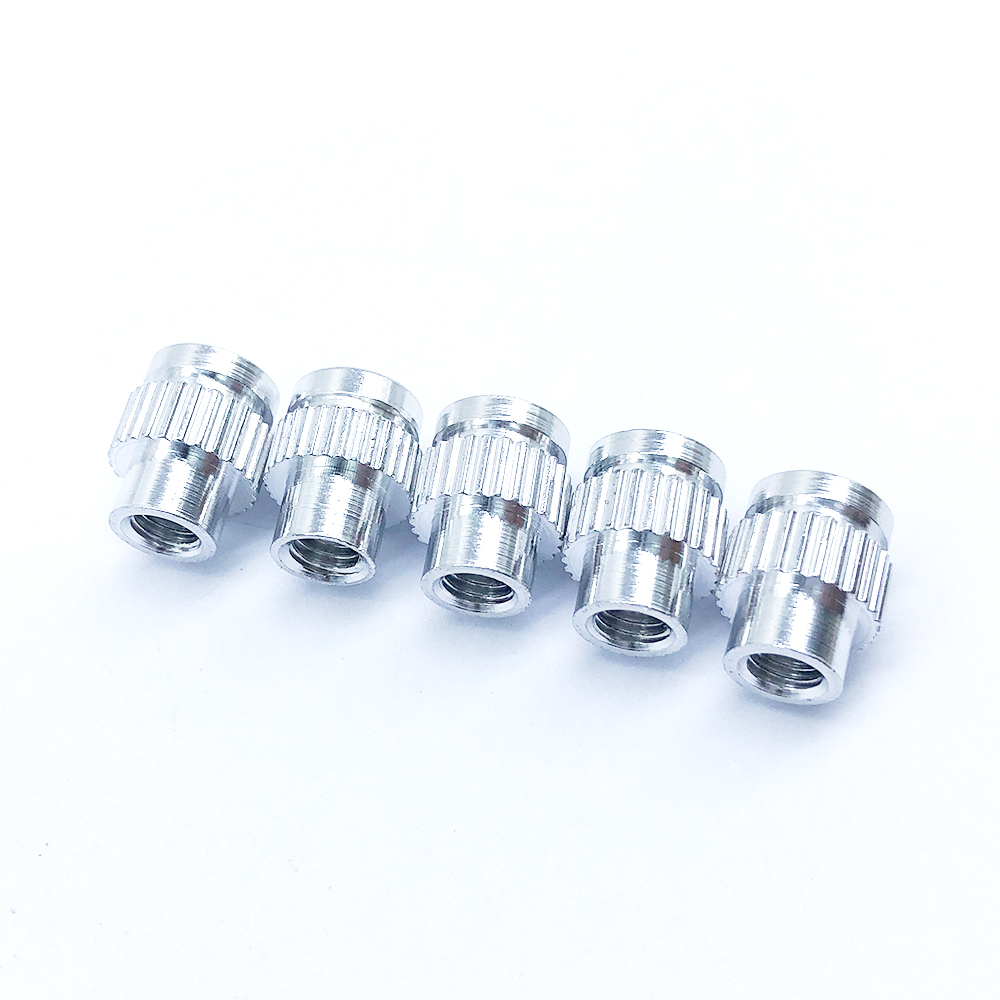

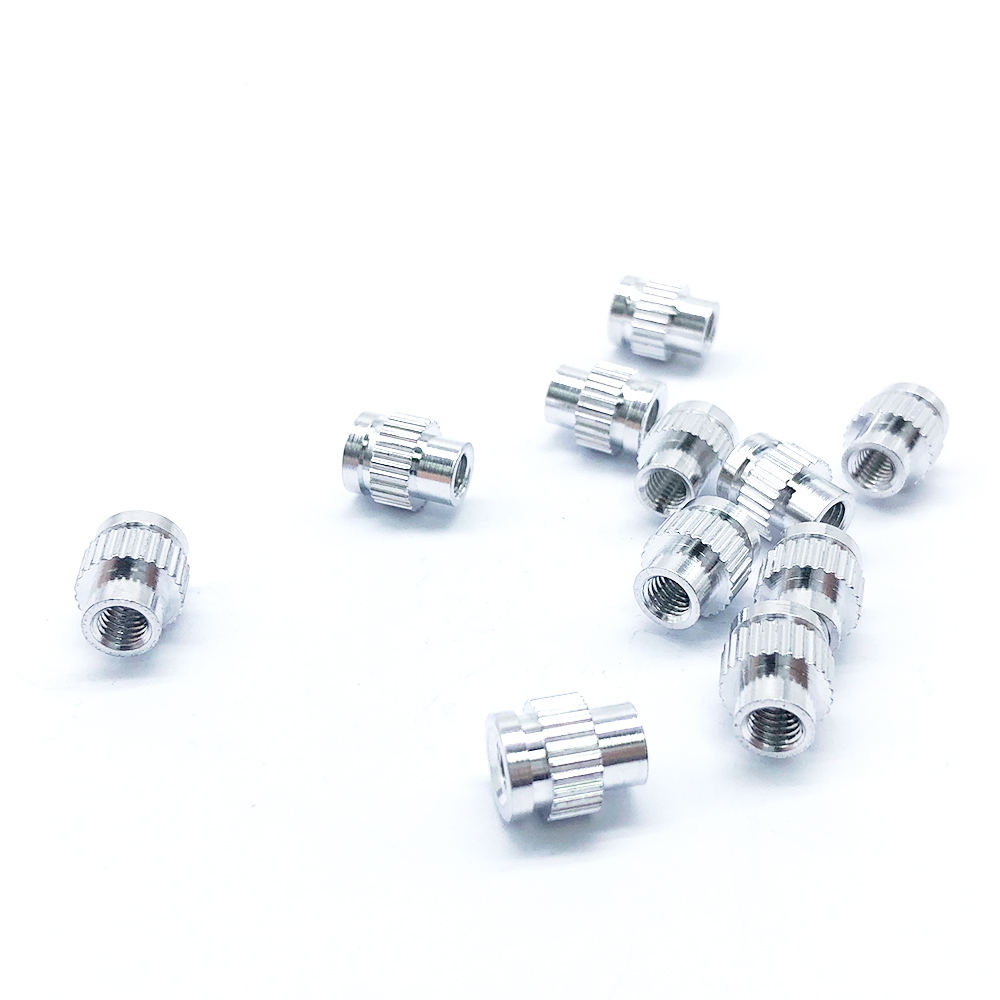

Drive Insert

Size: M4*0.8*12h

Grade: T6

Material: Al6063

Finish: Surface oxidation treatment

Key Features:

1. Material:

   • Steel: Drive inserts made from steel are used in heavy-duty applications and provide superior strength, wear resistance, and durability.
   • Stainless Steel: Stainless steel inserts are corrosion-resistant and are typically used in marine, outdoor, or food-grade applications.
   • Brass: Brass inserts are often used in softer applications or for electrical grounding and connections.
   • Aluminum: Aluminum inserts offer a lightweight solution for applications where weight reduction is critical.
   • Plastic: Plastic drive inserts are used in lightweight or non-load-bearing applications.

2. Internal Threads:

   • Most drive inserts feature internal threads that allow them to receive bolts, screws, or other fasteners. These threads can be customized to various thread standards (e.g., metric or imperial) and pitches, depending on the application.

3. External Surface:

   • Drive inserts are often designed with external features like knurls, barbs, grooves, or ridges to ensure a secure hold when inserted into the base material. These features prevent the insert from rotating, slipping, or pulling out under stress.

4. Size and Configuration:

   • Drive inserts come in a range of sizes and configurations to fit different applications. They are available in standard thread sizes (e.g., M6, M8, 1/4"-20) and can be designed for specific materials, hole sizes, or strength requirements.

Advantages:

1. Durability and Strength:

   • Drive inserts provide a strong, long-lasting threaded connection, even in soft or weaker materials like plastic, wood, or thin metals. The external features (knurls, barbs, etc.) ensure they stay in place under load, making them ideal for high-stress or high-torque applications.

2. Prevents Material Damage:

   • Drive inserts protect softer materials from being damaged by providing a strong, reusable threaded connection. This is especially useful in materials that are prone to stripping or wearing out, like wood or plastic.

3. Quick and Easy Installation:

   • Many drive inserts, especially push-in or self-tapping varieties, can be installed without the need for special tools, reducing installation time and effort.

4. Reusability:

   • Many types of drive inserts, particularly steel or stainless steel models, are reusable, meaning they can be installed and removed multiple times without losing their effectiveness or strength.

5. Versatility:

   • Drive inserts are versatile and can be used in a wide variety of materials, including wood, plastic, metal, and composites. This makes them suitable for a broad range of applications, from furniture making to automotive, electronic, and aerospace industries.

6. Enhanced Threading:

   • Drive inserts provide a reliable and durable threading solution for materials that may not otherwise hold threads effectively, such as soft plastics or thin metals. This enhances the overall strength of the connection and prevents damage to the base material.

Common Applications:

1. Furniture Manufacturing:

   • In woodworking or furniture assembly, drive inserts (especially knurled or self-tapping types) are used to create secure threaded holes in wood, allowing bolts or screws to be attached for structural integrity.

2. Automotive and Machinery:

   • Drive inserts are used in automotive applications, such as in securing drivetrain components, suspension parts, and engine components, where parts need to be securely fastened without damaging the base material (especially plastic or lightweight metal parts).
   • In machinery, drive inserts provide a durable connection in areas subjected to vibrations and high forces.

3. Electronics:

   • In the electronics industry, drive inserts are used for mounting circuit boards, attaching components to chassis, or creating secure connections in plastic or composite enclosures.

4. Aerospace:

   • In aerospace and aviation, drive inserts are used to secure parts or components that require high-strength, reliable threaded connections, especially in lightweight, high-stress applications.

5. Construction:

   • Drive inserts are used in construction applications, such as in securing parts to sheet metal, composite panels, or aluminum structures where creating a traditional thread would be difficult or impractical.

6. Consumer Products:

   • Drive inserts can also be used in the assembly of consumer products such as appliances, tools, and sporting equipment, where a durable and reusable threaded connection is necessary.
