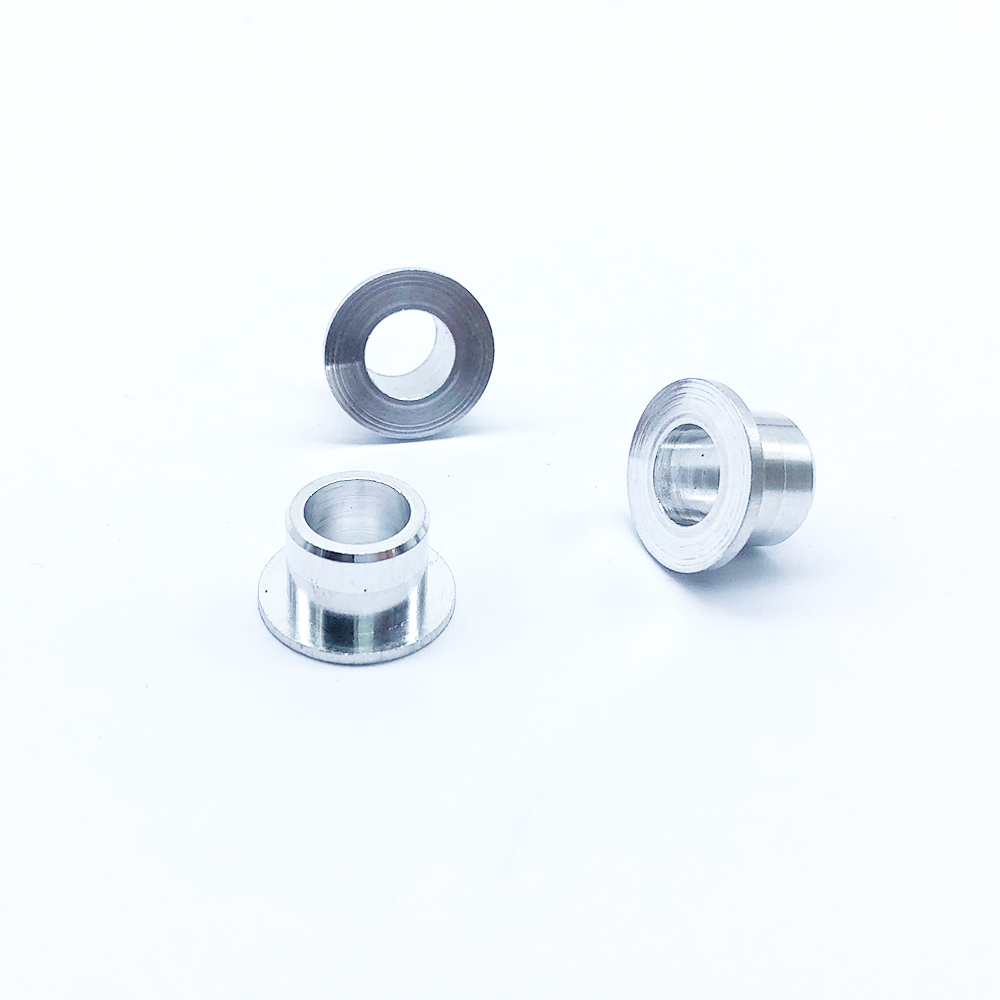

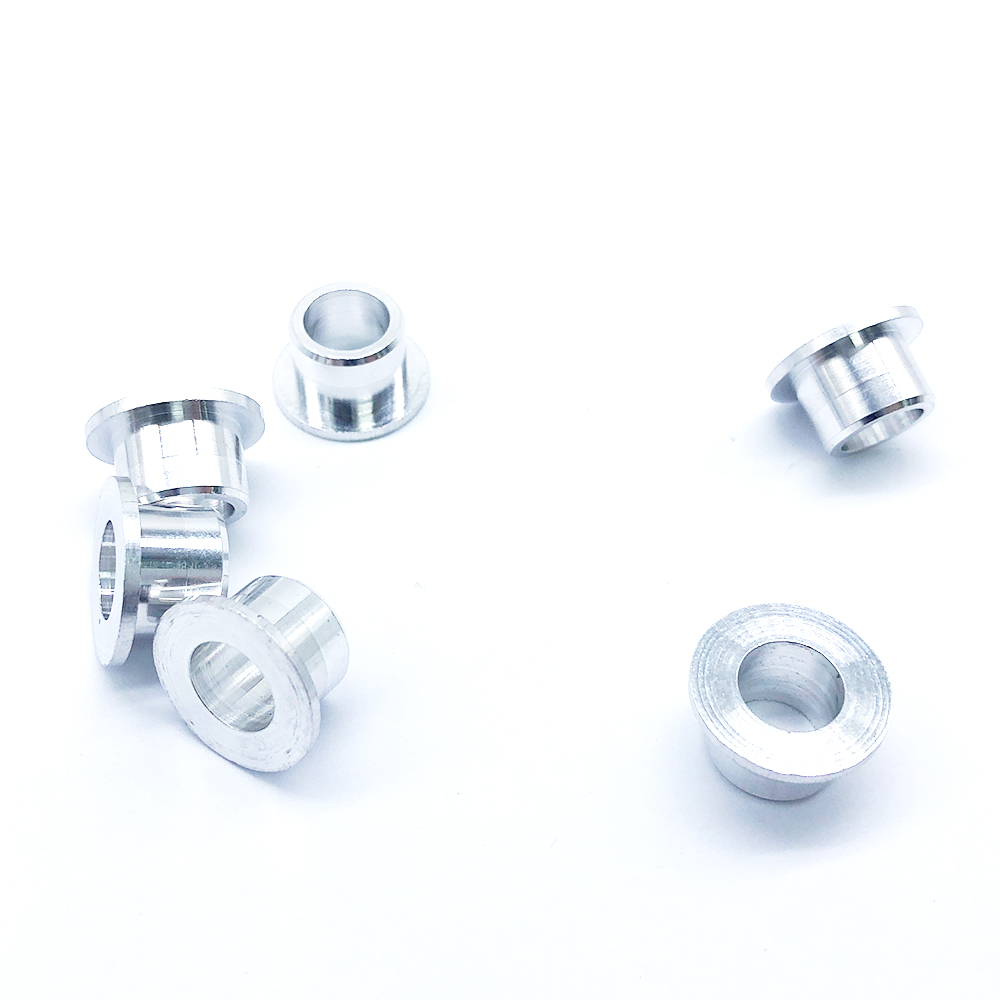

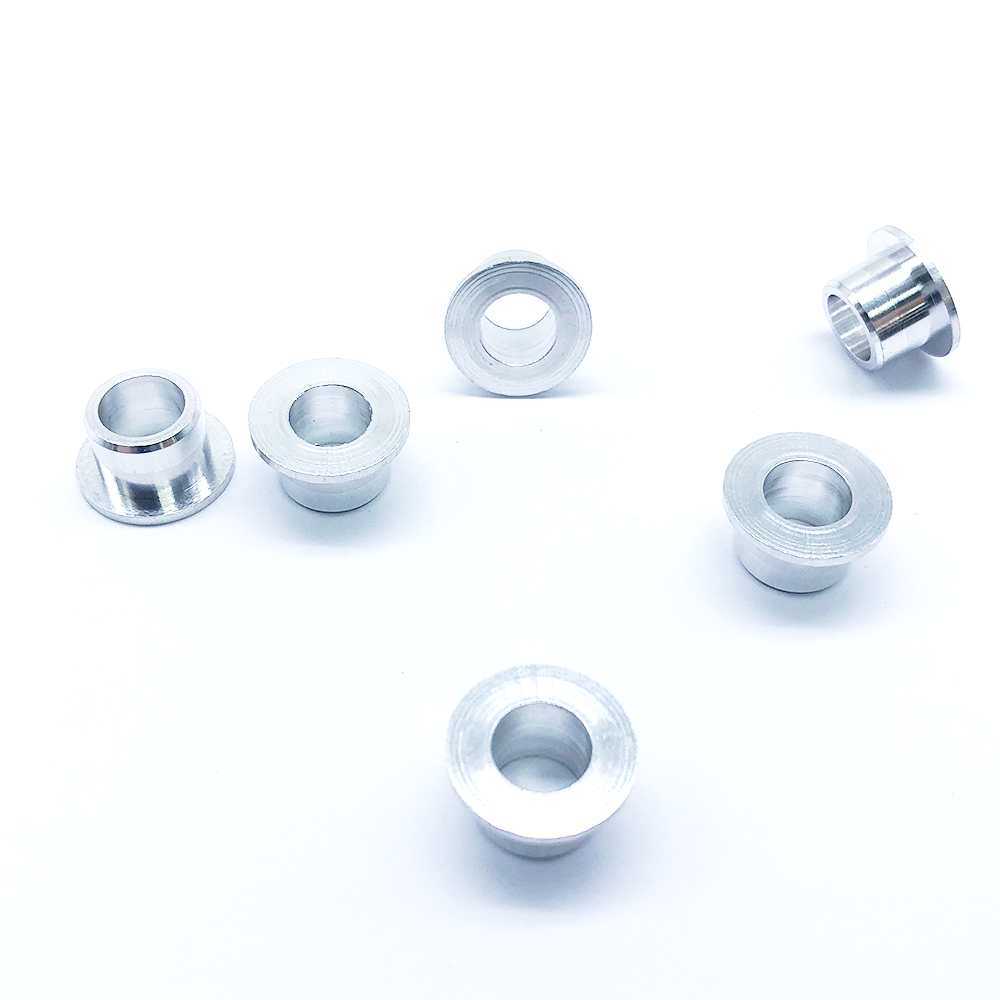

T-shaped Insert

Size: M10*17.5*10h

Grade: T6

Material: Al6063

Finish: Surface oxidation treatment

Key Features:

1. T-Shape Design:

   • The main feature of a T-shaped insert is its cross-sectional shape, which resembles the letter "T". The stem of the T is usually threaded, while the top part (the crossbar) is often wider and acts as a flange to prevent the insert from pulling through the material.
   • The wide, flat head of the insert provides an increased surface area, which helps to distribute load evenly across the material and prevents the insert from pulling out under stress.

2. Material:

   • Steel: T-shaped inserts made from steel are commonly used in metalworking applications due to their strength and durability.
   • Stainless Steel: For applications requiring resistance to corrosion, such as in outdoor or marine environments, T-shaped inserts made of stainless steel are ideal.
   • Aluminum: Used in lightweight applications or where corrosion resistance is less of a concern, aluminum T-shaped inserts can offer strength without adding too much weight.
   • Brass or Bronze: These materials are often used in cases where corrosion resistance is needed but where a softer material than steel is preferred.
   • Plastic: T-shaped inserts can also be made from durable plastic, which is useful for applications where a non-metallic insert is required.

3. Thread Types:

   • Internal Threads: T-shaped inserts typically have internal threads in the stem, allowing them to accept a screw, bolt, or other fastener from the outside.
   • External Threads: Some T-shaped inserts may also feature external threads on the stem to allow for anchoring into a material that provides an internal cavity for the insert.

4. Size and Length:

   • T-shaped inserts are available in a wide range of sizes, from small versions used in light-duty applications to larger inserts for heavy-duty applications.
   • The length of the insert typically corresponds to the thickness of the material into which it is inserted.

5. Installation:

   • Press Fit: In some cases, T-shaped inserts are pressed into pre-drilled holes, and the flange at the top prevents them from falling out.
   • Screw-In: T-shaped inserts may also be designed to screw into a pre-tapped hole, with the threaded stem allowing them to securely anchor into the material.

6. Flanged vs. Non-Flanged:

   • Flanged T-shaped Inserts: These have a flange or broad section at the top that prevents the insert from pulling through the material.
   • Non-Flanged T-shaped Inserts: These may be used in specific applications where the flange is not required, and they rely on the threaded stem to hold the insert in place.

Common Applications:

1. Woodworking:

   • Wood Inserts: In woodworking, T-shaped inserts are often used to provide a secure threaded hole in materials like plywood, MDF, or hardwood. These inserts allow for the attachment of bolts, screws, or other hardware without weakening the wood, especially in areas subject to repeated assembly and disassembly.
   • These inserts are often used for furniture assembly, such as attaching legs to tables or fixing hardware on cabinets.

2. Metalworking:

   • T-shaped inserts are used in machining and fabrication to allow a bolt or other fastener to be securely anchored into a metal part, often where conventional threading methods would be difficult or time-consuming.
   • They are also used in cases where a material is too thin to tap directly, and the insert helps create a durable thread.

3. Plastic and Composite Materials:

   • In plastics and composite materials, T-shaped inserts provide a secure method for adding threaded connections where conventional threads would not hold, preventing damage to the material. These inserts are often used in electronics enclosures, plastic housings, and automotive parts.

4. Automotive and Aerospace:

   • T-shaped inserts are used in automotive and aerospace applications to provide strong, reusable threaded connections in lightweight composite materials or metals. They allow the attachment of various components to a central base, such as interior parts, engine components, and structural elements.

5. Consumer Goods and Furniture:

   • In furniture assembly, especially flat-pack furniture, T-shaped inserts are often used to connect parts without the need for special tools or equipment. These inserts enable screws or bolts to be easily driven into pre-threaded inserts for a strong, stable connection.

6. Electronics:

   • T-shaped inserts are used in electronics for securing components like circuit boards, switches, or other internal devices where a non-corrosive, secure, and reusable connection is necessary.

Advantages:

1. Load Distribution: The wide head of the insert provides a larger surface area to distribute the load more evenly, reducing the chance of the insert pulling out or damaging the material.
2. Reusable Threading: T-shaped inserts create a durable threaded hole, allowing bolts, screws, or other fasteners to be securely reinstalled multiple times without damaging the material.
3. Secure Fixing: The T-shaped design ensures that the insert cannot easily pull out, especially under high loads or repeated fastening.
4. Cost-Effective: Using inserts can be more cost-effective than tapping or threading a material directly, especially when dealing with softer or composite materials that are prone to wear.
5. Prevents Material Damage: In soft or brittle materials (like plastic or wood), T-shaped inserts prevent damage by creating a stronger connection without stressing or cracking the base material.
