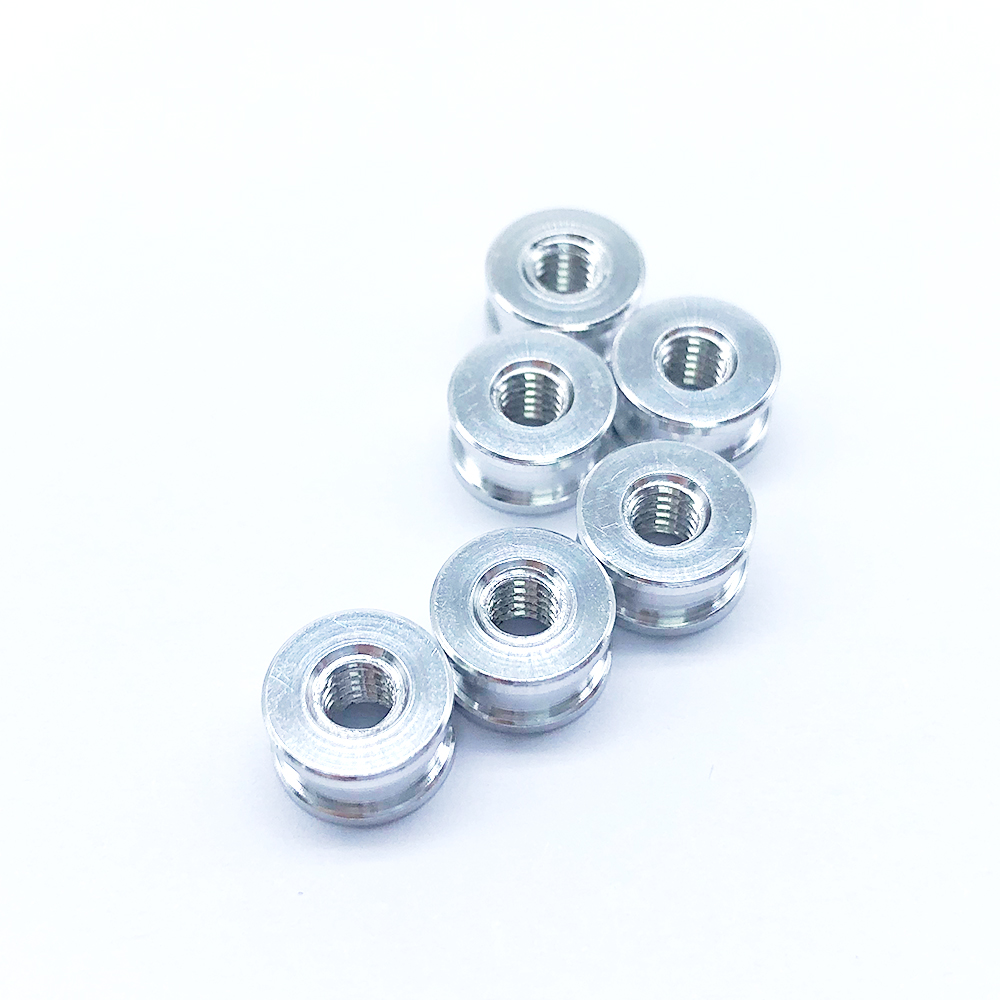

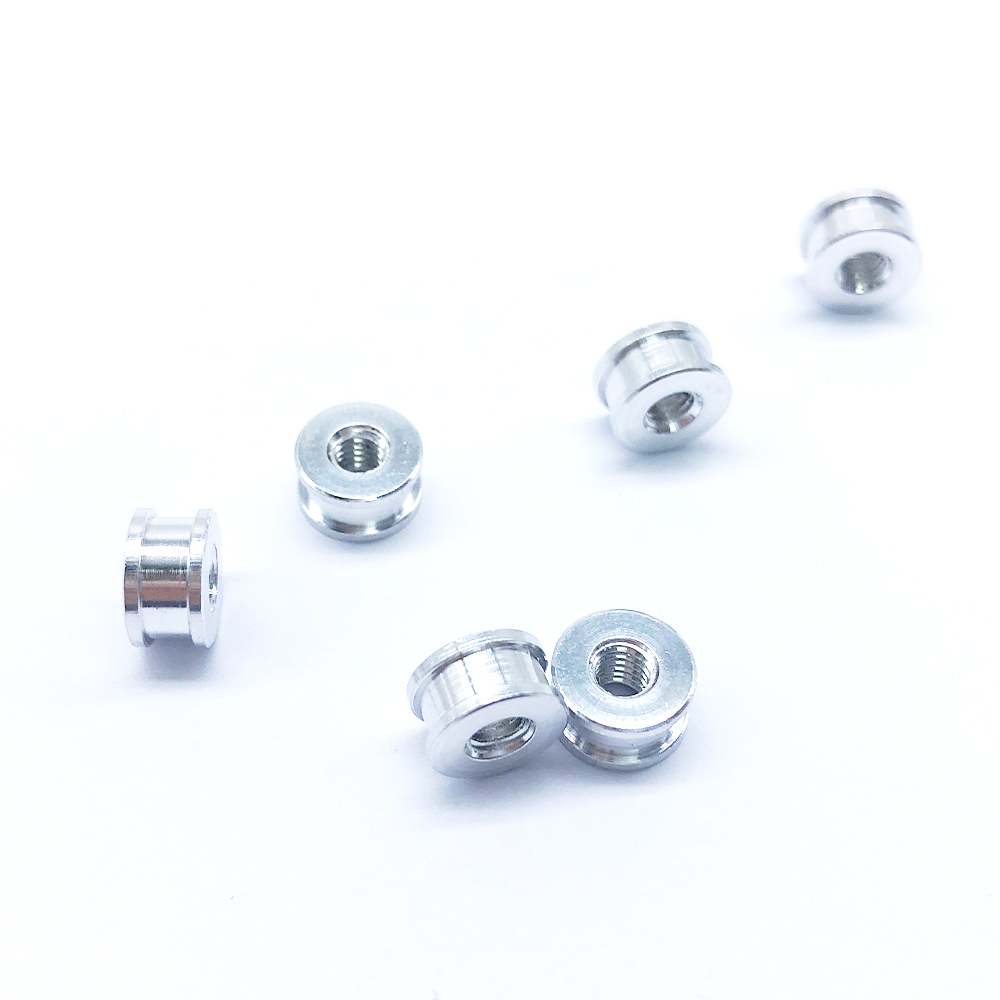

Half Shaft Drive Insert

Size: M3*1*9*2.7*5h

Grade: T6

Material: Al6063

Finish: Surface oxidation treatment

Key Features:

1. Purpose:

   • Half shaft drive inserts are designed to serve as an intermediary between the half shaft (which is part of a drivetrain system) and the corresponding drive components like gears, couplings, or wheels.
   • Their primary function is to ensure a secure, durable connection that allows power to be transferred effectively from the engine or motor to the wheels or other driven components in a vehicle or machinery.

2. Shape and Design:

   • These inserts are typically cylindrical or sleeve-shaped with a specific internal and external geometry to match the half shaft and the corresponding drive component.
   • Splines or teeth are often included in the design, allowing the insert to engage tightly with the shaft and the receiving part, minimizing the risk of slippage or wear.
   • In some designs, the insert may include rubber or elastomeric seals to reduce vibration or friction between the shaft and the drive component.

3. Materials:

   • Steel: Often used for its strength and durability, steel inserts can withstand high torque and stress encountered in drivetrain applications.
   • Alloy Steel: This material is often used for its superior strength-to-weight ratio and resistance to wear and corrosion, making it suitable for demanding automotive and industrial applications.
   • Stainless Steel: Preferred in applications exposed to moisture or corrosive environments, such as in marine or off-road vehicles.
   • Aluminum: Lighter than steel, aluminum may be used in applications where weight savings are essential, though it may not offer the same strength under heavy loads.
   • Composite Materials: In some cases, high-strength composite materials may be used to create inserts that are both lightweight and resistant to corrosion or wear.

4. Types:

   • Solid Inserts: These inserts are solid, offering high strength and durability but may be heavier than hollow or split designs.
   • Split Inserts: These inserts are designed to split open, allowing for easier installation and removal. They are typically used in applications where quick assembly or disassembly is needed.
   • Spline Inserts: Often used in situations where a tight, high-torque connection is required. The splined interior allows for a more secure fit and effective power transfer.

5. Application Areas:

   • Automotive: In vehicles, half shaft drive inserts are commonly used in front-wheel drive (FWD) and all-wheel drive (AWD) systems to connect the half shaft to the differential or wheel hub. These inserts help transfer torque efficiently from the engine to the wheels.
   • Heavy Equipment: In construction machinery, excavators, and agricultural machinery, half shaft drive inserts are used to connect the driveshaft to various drive components, ensuring the efficient operation of the equipment.
   • Industrial Machinery: These inserts may also be used in manufacturing equipment, conveyors, or heavy-duty machines where shafts need to be connected to gearboxes, motors, or other mechanical components.
   • Motorcycles and ATVs: These inserts can be used in motorcycles, all-terrain vehicles (ATVs), and other power-driven recreational vehicles to connect the engine power to the wheels or other drive components.

Advantages:

1. Enhanced Power Transfer: They ensure that torque is transferred effectively from the engine or motor to the wheels or other drive components, improving the overall efficiency of the drivetrain.
2. Prevents Slippage: The use of splines or teeth in the insert reduces the risk of slippage between the half shaft and the connected components, which could cause premature wear or failure.
3. Durability: Made from strong materials like steel or stainless steel, these inserts are designed to withstand high forces and harsh environments, ensuring long service life.
4. Flexibility: Half shaft drive inserts can be designed for different types of connections, including splined, keyed, or threaded interfaces, allowing for a wide range of applications.
5. Vibration Dampening: Some inserts incorporate vibration-dampening features, which help to reduce wear and tear on the drivetrain, leading to smoother operation and less stress on components.
6. Cost-Effective Maintenance: Inserts can be replaced individually, allowing for targeted repairs without the need to replace entire shafts or drive components.
