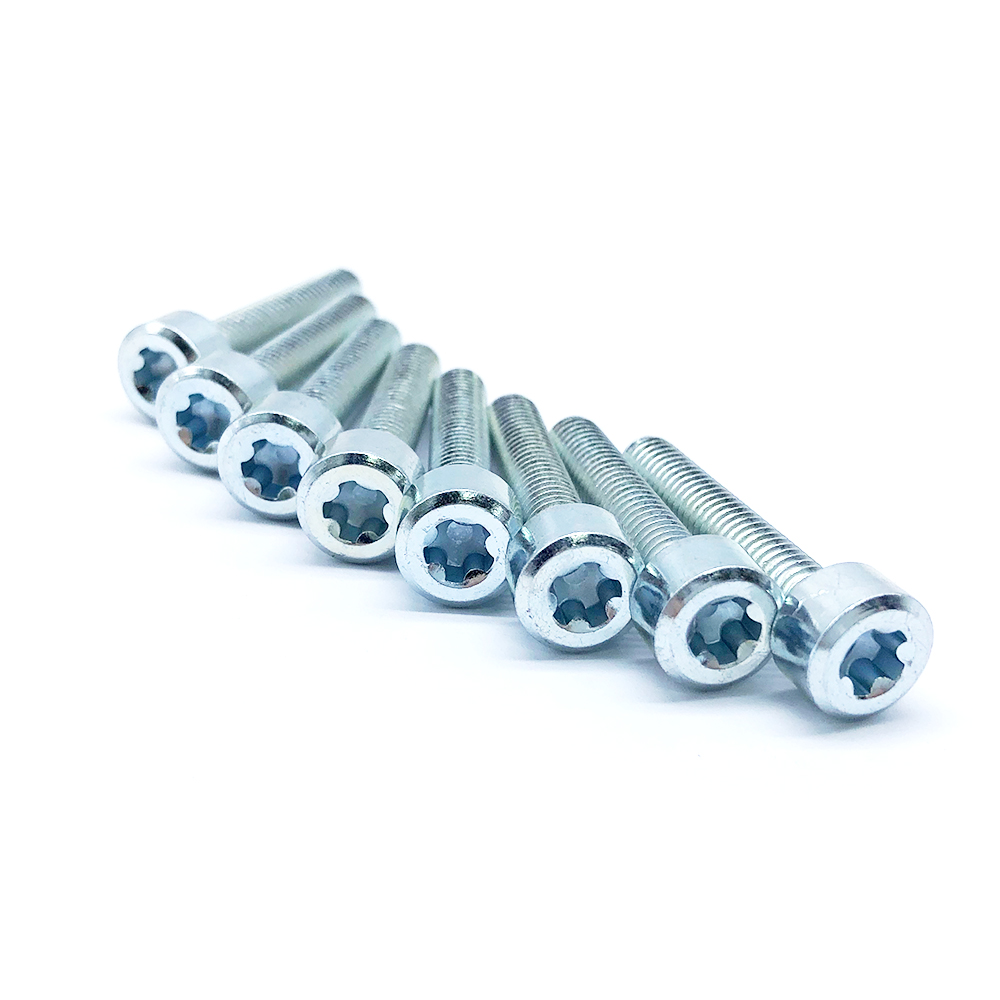

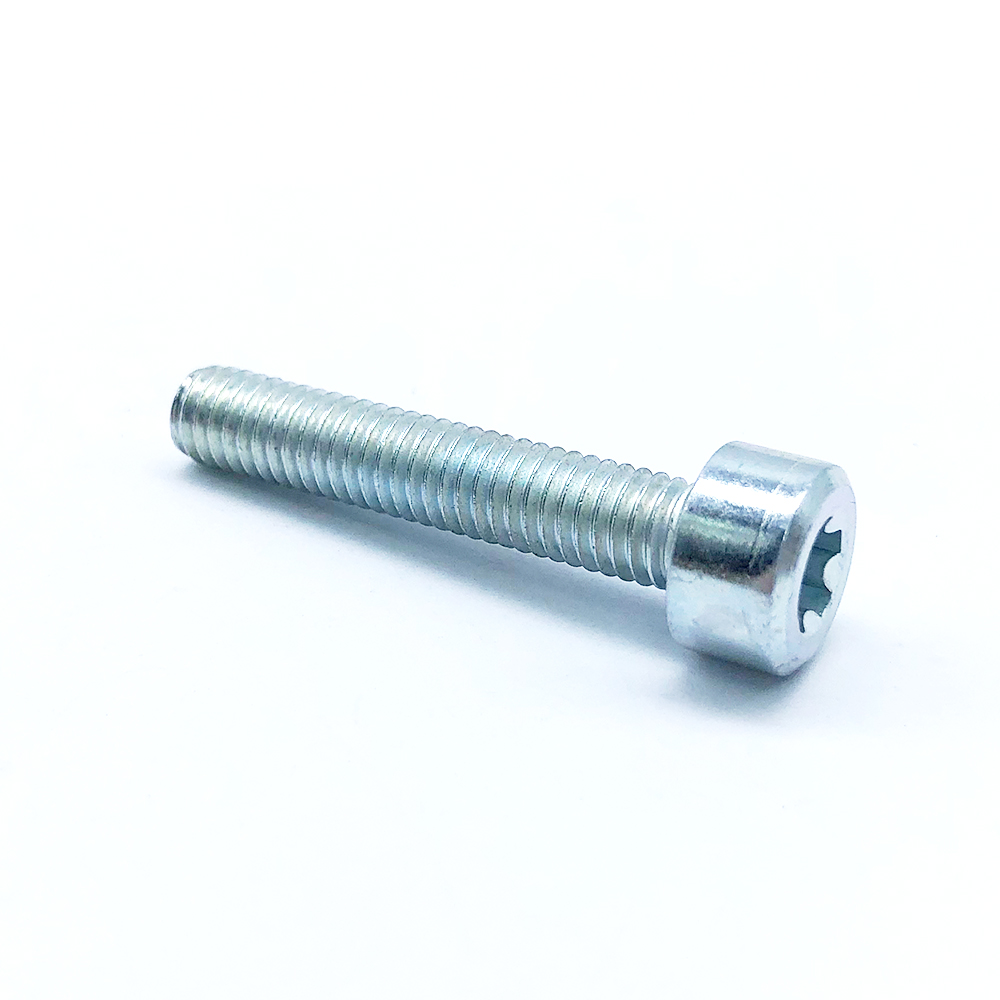

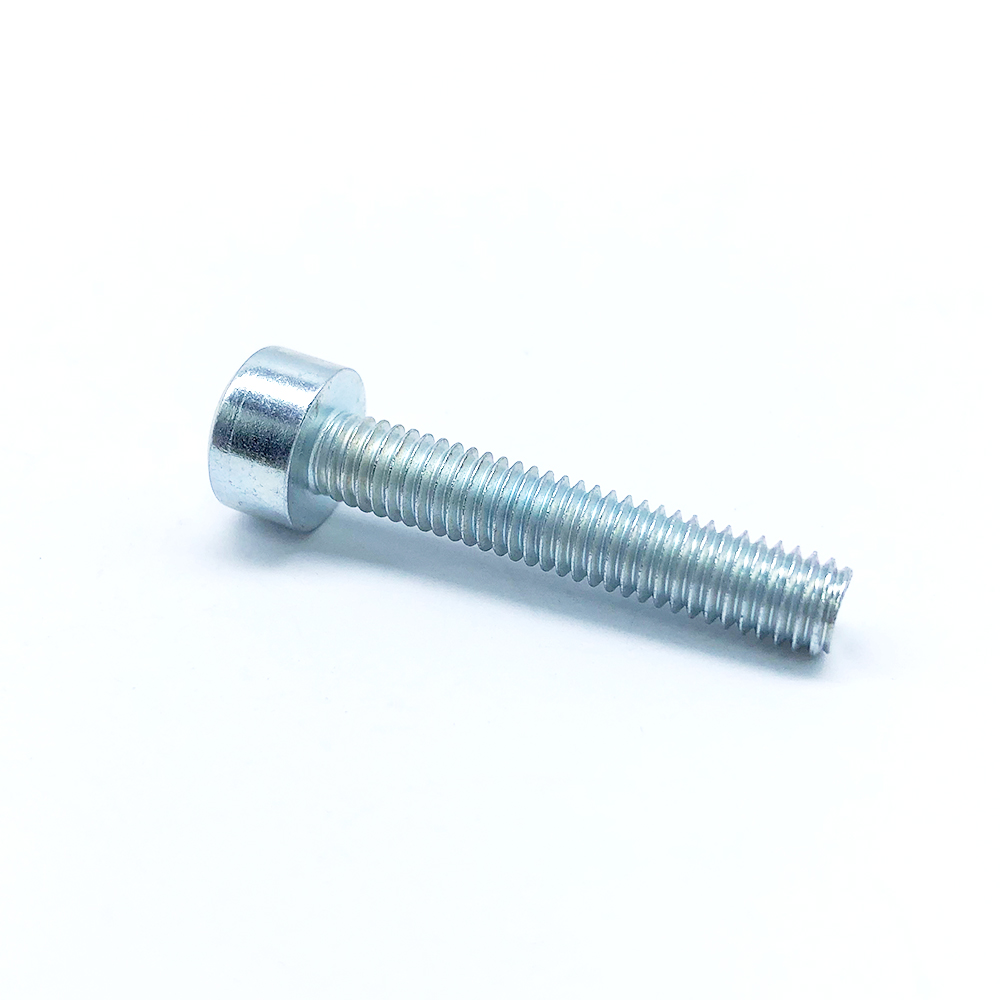

Torx Cylindrical Head Bolt

Size: 6*32

Grade: 8

Material: 10b21

Finish: White zinc plating

Key Features:

1. Torx Drive (Star-Shaped Socket):

   • The Torx drive is a star-shaped, six-point pattern designed to prevent cam-out, which is the slipping of the tool out of the fastener's head during tightening. This provides more efficient torque transmission and makes the bolt less likely to strip.
   • The Torx drive system allows for greater torque to be applied without damaging the fastener or tool. The deeper, more precise fit between the tool and the fastener increases the grip, providing a more secure and stable fastening process, especially in high-torque applications.

2. Cylindrical Head:

   • The cylindrical head is characterized by its simple, straight-sided design, with a smooth cylindrical shape. Unlike other bolt heads, such as hex or pan heads, it doesn't have protruding edges or a wide flange.
   • This design makes the cylindrical head ideal for applications where space is limited or where a more compact appearance is desired. It is often used in industries that require fasteners that are flush with the surface or have minimal visibility once installed.
   • The cylindrical shape also provides a larger surface area for load distribution, preventing damage to the material being fastened and ensuring a secure hold.

3. Material:

   • Steel: Torx cylindrical head bolts are most commonly made from steel, which offers good strength, durability, and reliability for general fastening needs. Steel bolts can be coated with protective finishes such as zinc or black oxide to resist corrosion.
   • Stainless Steel: For applications exposed to harsh environments or requiring enhanced corrosion resistance (e.g., marine, outdoor, or food-related applications), stainless steel versions are commonly used.
   • Alloy Steel: For applications requiring greater strength, alloy steel bolts may be used, especially when heat-treated for additional strength and resistance to wear.
   • Brass or Aluminum: For specialized needs, such as in electrical applications or where weight is a consideration, brass or aluminum may be used.

4. Size and Thread Type:

   • Torx cylindrical head bolts come in a range of metric and imperial sizes. Common sizes include M3, M4, M5, M6, M8, and larger sizes (e.g., M10, M12).
   • The threads can be coarse or fine, depending on the requirements of the application. Fine threads are typically used when more precise, secure fastening is required, while coarse threads are better for faster assembly.
   • The length of the bolt is also adjustable to suit different application depths, with options ranging from short bolts used for shallow fastening to long bolts used for thicker material applications.

5. Coatings and Finishes:

   • Zinc Plating: A common coating for steel bolts, zinc plating provides good corrosion resistance and a shiny, metallic finish.
   • Black Oxide: Offers a sleek black appearance while providing mild corrosion protection and improving wear resistance.
   • Anodized (for aluminum bolts): A coating process used to increase corrosion resistance and improve the aesthetic finish of aluminum fasteners.
   • Galvanized: Often used for bolts exposed to harsh outdoor environments, providing enhanced corrosion resistance.
   • Phosphate Coating: Some industrial bolts are phosphate-coated to reduce friction and wear in high-stress environments.

Common Applications:

1. Electronics:

   • Torx cylindrical head bolts are widely used in electronics and appliance assembly, especially for securing parts that require a low-profile fastener. The Torx drive prevents tampering and ensures that the assembly is secure, while the cylindrical head provides a sleek, unobtrusive appearance.
   • Common applications include fastening panels or internal components in computers, televisions, phones, and other electronic devices.

2. Automotive:

   • In the automotive industry, Torx cylindrical head bolts are used for securing trim, panels, and various internal parts. Their tamper-resistant nature makes them ideal for use in automotive applications, where vibration and high torque are common.
   • They are used for components such as door panels, dashboards, and engine parts that require secure and reliable fastening.

3. Furniture Assembly:

   • Torx cylindrical head bolts are commonly used in furniture assembly, particularly for modern furniture pieces that require a clean, low-profile fastener. Their tamper-resistant nature is also useful in furniture that might be disassembled and reassembled, such as modular or flat-pack furniture.

4. Industrial Equipment:

   • These bolts are also used in the assembly of industrial machinery and automated systems where high-torque, tamper-resistant fastenings are required. The secure fastening of components ensures the machinery operates smoothly and reliably.

5. Medical Devices:

   • In medical equipment manufacturing, where precision and secure fastening are critical, Torx cylindrical head bolts are often used to secure internal parts or enclosures. The tamper-resistant features prevent unauthorized disassembly of critical medical devices.

6. Bicycles and Motorcycles:

   • Torx cylindrical head bolts are sometimes used in the bicycle and motorcycle industries for securing parts like handlebars, seat posts, and trim components. Their high-torque handling and tamper-resistant design make them suitable for high-performance applications.

7. Marine Applications:

   • Stainless steel Torx cylindrical head bolts are ideal for marine applications, where they are exposed to moisture and harsh environments. The corrosion-resistant properties of stainless steel make these bolts well-suited for use in boats, yachts, and other marine equipment.

8. Appliance Assembly:

   • For household appliances such as refrigerators, washing machines, and microwaves, Torx cylindrical head bolts provide a secure and aesthetic solution for fastening parts.

Advantages:

1. High Torque Handling: The Torx drive allows for the application of higher torque compared to traditional screw drives, ensuring a more secure connection in high-torque applications.

2. Tamper Resistance: The Torx drive is designed to reduce the likelihood of stripping or tampering, making these bolts ideal for applications that require a higher level of security.

3. Aesthetic and Low-Profile Design: The cylindrical head offers a sleek, compact appearance that is suitable for applications requiring a low-profile or flush fastening solution.

4. Load Distribution: The cylindrical head provides a wider contact area with the material being fastened, ensuring that the load is distributed evenly and reducing the risk of damage to the material.

5. Durability: Made from strong materials like steel or stainless steel, Torx cylindrical head bolts are highly durable and resistant to wear, corrosion, and environmental damage.

6. Versatility: These bolts are suitable for a wide range of applications, from electronics and automotive to industrial machinery and household appliances.
